SpecificationsDetailsImage Sensor1/4 CMOSLens3.6mmPixel1.3 MegapixelResolution1080P (1920*1080)View Angle75°AlarmMotion DetectionInternet ConnectionWi-Fi 802.11b/n/g 2.4GhzConnection ModeOne Key BindingVideo CompressionH.264StorageTF card (Micro SD), up to 128GB (Not included)AudioBuilt-in Microphone and SpeakerTwo-Way TalkSupportedSystem SupportAndroid, iOSDetection Area5~20mNight Vision82ft (25m)Working Temperature-20°C~50°CWaterproof LevelIP66Power InputDC12V/1AMax Power Consumption6W
Q: What is a Smart Outdoor WiFi IP Camera?
A Smart WiFi Outdoor IP Camera is a security camera designed for outdoor use. It connects to your home or office WiFi network and allows you to monitor the area remotely through a smartphone or tablet. It captures high-definition (1080P HD) video and usually features additional smart functionalities such as motion detection, night vision, two-way audio, and remote access.
Q: How does a Smart WiFi Outdoor IP Camera work?
A: The camera connects to your WiFi network, allowing you to access it remotely through an app. It captures video footage, which can be stored locally on an SD card or on cloud storage. The camera uses your home or office WiFi network to transmit the video feed to your device, providing you with real-time monitoring and playback capabilities.
Q: What are the benefits of using a Smart WiFi Outdoor IP Camera?
Remote monitoring: You can access the camera feed from anywhere using a smartphone, tablet. High-definition video: The camera captures video in 1080P HD resolution, ensuring clear and detailed footage. Motion detection: Many cameras come with built-in motion sensors that can send alerts to your device when movement is detected. Night vision: The camera is equipped with infrared LEDs, enabling it to capture video in low-light or nighttime conditions. Two-way audio: Some models allow for two-way communication, allowing you to speak and listen through the camera. Weatherproof and durable: Outdoor cameras are designed to withstand various weather conditions and are built to be durable.
Q: How can I set up a Smart WiFi Outdoor IP Camera?

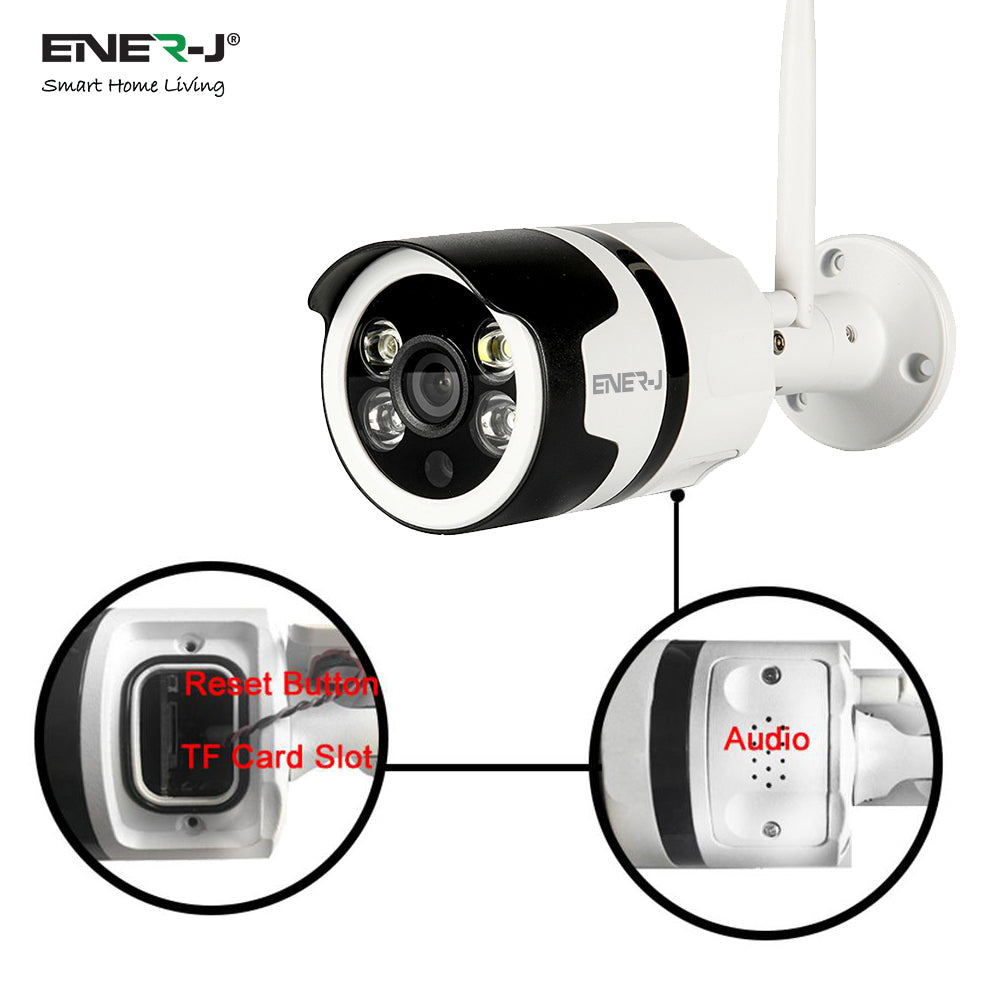

Pairing instructions for app “Add device” “Camera and Lock” “Smart Camera Wifi” When it tells you to reset the device please press the reset button for 5 seconds. Click next in the app and enter your new wifi password and click on next You will get a QR code on your phone which you need to show to the camera lens from 15 to 20 cms away till you hear a "Single Beep" from the doorbell or "Pairing information received" Click next and wait for it to be picked by the network.
Q: Can multiple users access the Smart WiFi Outdoor IP Camera?
Yes this is possible by either sharing the password and username of the app or in the app you get an option to Share with family and friends
What happens when the SD card is full?
Once the sd card is full camera will continue recording and overwrite the oldest data first
How to use 2 way audio?
You need to activate 2 way audio option which you can find under basic function settings in the app. Please ensure you click on the mic in the app when you want to speak to the opposite person
Camera shows offline?
Camera only goes offline when it loses connection with wifi for some reason like when you restart a hub and it not able to connect to it then it will show offline to avoid these issue you can add a extender which is nearer to the camera so that it gets proper signal from your hub. If the camera is not coming back on line on its own then you need to delete the device from the app and then add it again to delete the device click on pen like icon on the top right corner where it says offline and you can see the option at the bottom page to remove device click on remove device and then pair the camera with your app.
Establishing Connection Error
You receive this error when there is connect error between your router and the camera, Try restarting the camera from the mains to resolve this as doing this it will force your router to give out another IP address to the camera, If that doesn't work then please reset the camera like a new, To do so click on the top right corner of the screen on the pen like icon and go the bottom of the page you will the see the option of remove device please click on it and then add it again like a new device on the same app.
Picture showing upside down in the app
When you log in to the app go to settings from the live view by clicking on the pen like icon on the top right corner of the screen, Look for Basic Function Settings and click on flip and turn it off. That should fix it, If this does not work then please delete the doorbell from the app by clicking on Remove device and wipe data and pair it again that should fix it for sure.
