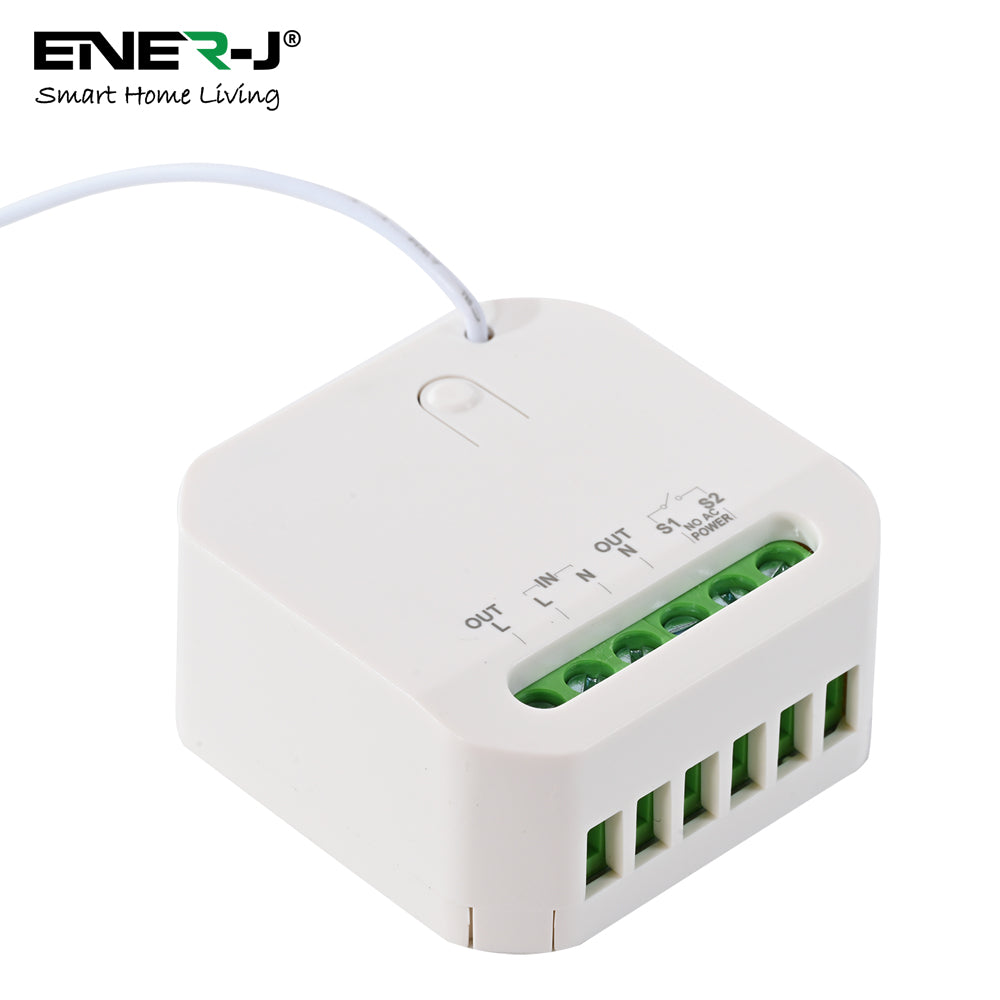

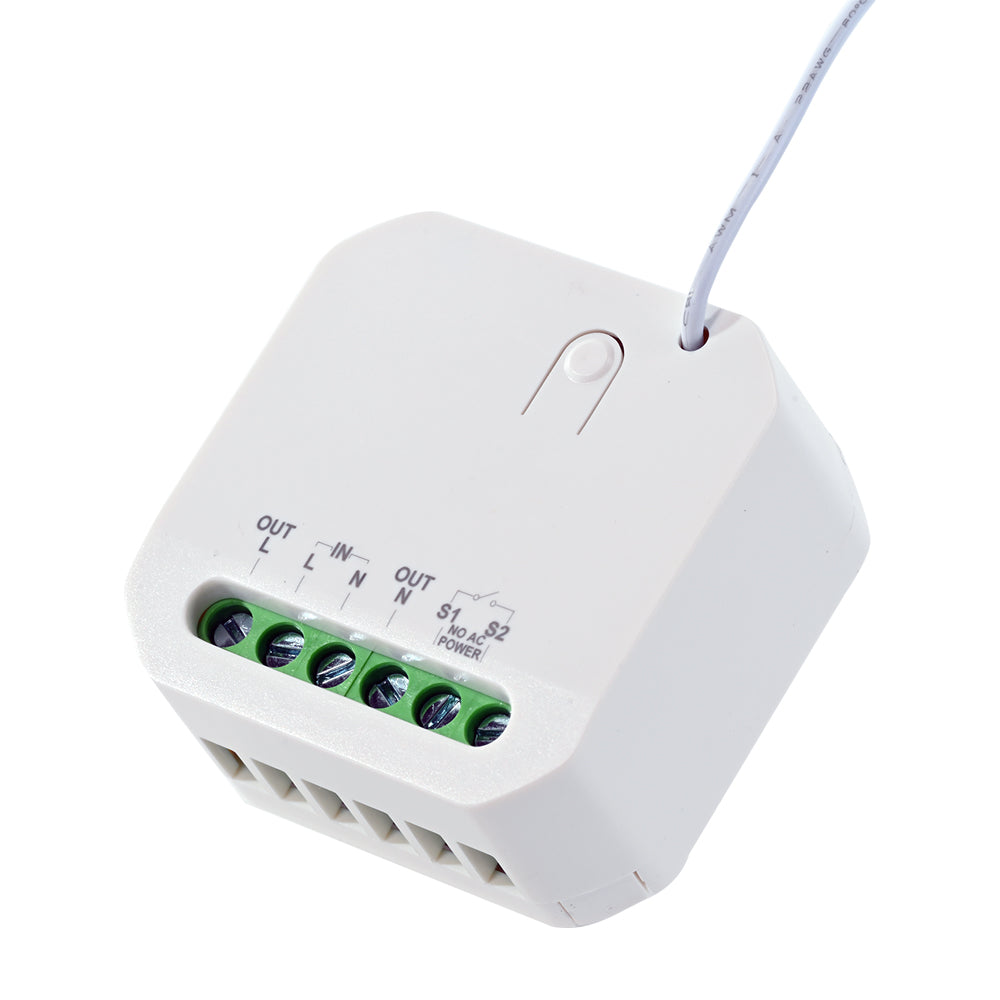

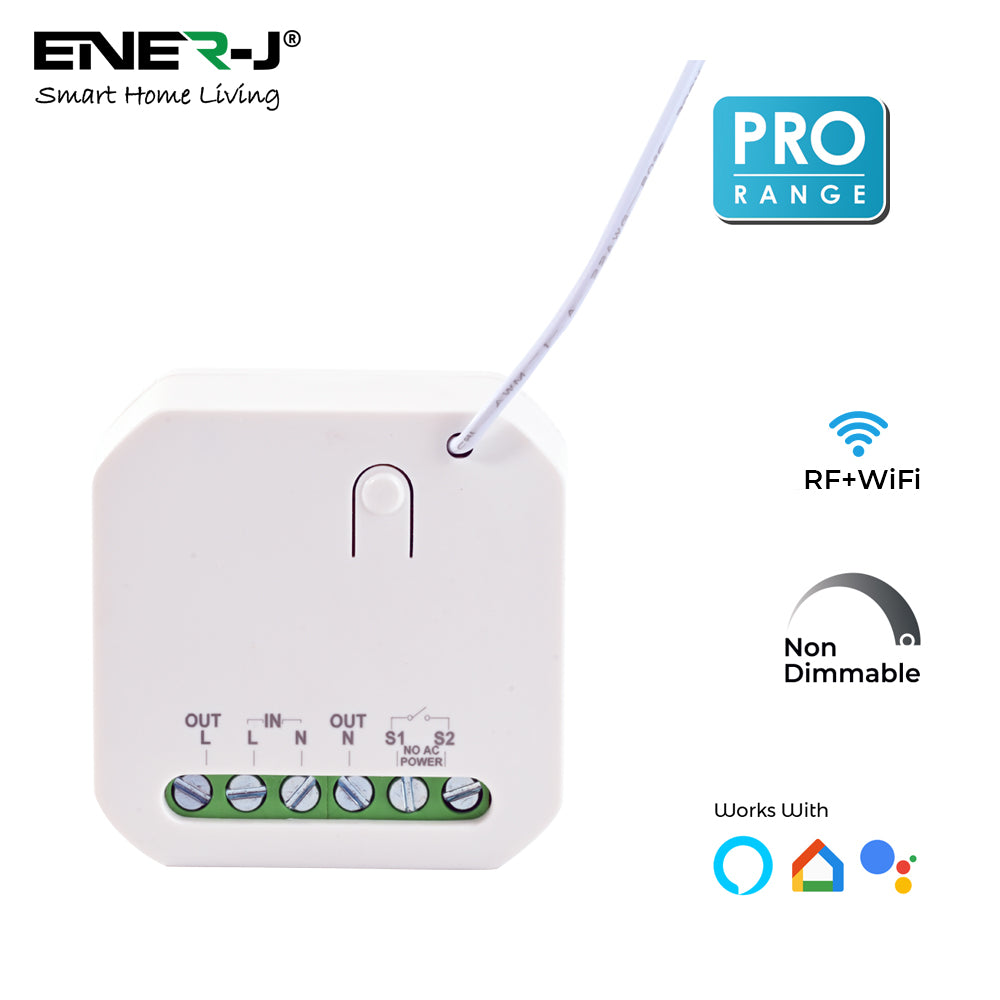

Upgrade your lighting control experience with ENER-J's 500W RF+WiFi Non-Dimmable Magic Receiver Module, compatible only with ENER-J's Pro Series Wireless Switches (switches not included with this). This receiver works seamlessly with our Pro Range Series Wireless Kinetic Switches (WS1024X/WS1025X/WS1035X/WS1041/WS1042/WS1043/WS1044/WS1045/WS1046 & all grid switches) or can be controlled via the ENERJSMART app from anywhere or through voice commands with Alexa or Google Home. Easily wire the receiver between your light fixture and power supply, and enjoy wireless remote control from up to 20 meters indoors or 80 meters outdoors. The slim and durable design allows for easy installation in the ceiling, and it can also be used outdoors within a waterproof junction box
Wireless Remote & Voice Control: Pair with our PRO Range Series Wireless Kinetic Switches for easy remote control or use the ENERJSMART app or voice commands with Alexa/Google Home.
Convert Existing tradition hard wired switch to 2 Way: Now you dont need to worry if your hard wired switch is off, then you cant use the wireless switch to control the same set of lights. With the new magic receiver module, even if your hard wired switch is off, the kinetic switch will still work.
Slim Design: The compact receiver module fits seamlessly in the ceiling and can be used outdoors when placed in a waterproof junction box.
Durable & Flexible Coding: Designed with ultra-low power consumption, the receiver runs up to 200,000 hours and supports one switch controlling up to 10 receiver modules or multiple switches controlling one light.
APP & Voice Control: Use the ENERJSMART app to control the receiver module from anywhere, set timers, and schedule on/off times for added convenience. Use your voice assistants such as Alexa, Google Home, Siri, etc to turn on/off your Magic Module.
Technical Specifications:
Software support end date: 10/08/2028
| Range |
Indoor: Max 20M, Outdoor: Max 80M (approx) |
| Rated Load |
5A |
| Max Load |
LED: 500W, Other: 1100W |
| IP Rating |
Indoor Only (IP20) |
| Dimensions |
Height: 64mm, Length: 32mm, Width: 24mm |
| Standby Power Consump. |
<0.5W |
| Communication |
RF 433MHz + WiFi (2.4G only) APP & Voice Control |
- 500W RF+WiFi Non-Dimmable Receiver Module
- User Manual
