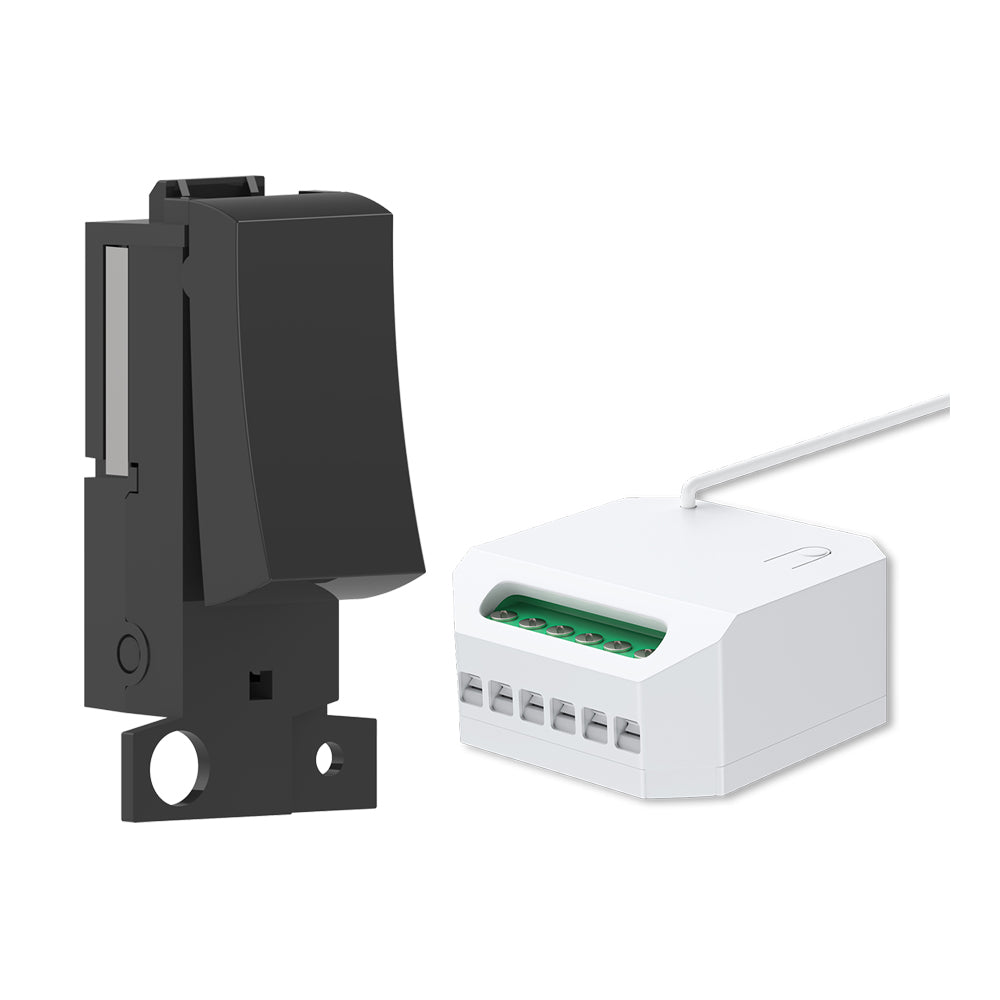

CLICK SCOLMORE Type 1 Gang Grid Switch, Black Body with Non Dimmable + WiFi 5A RF Mini Receiver
CLICK SCOLMORE Type 1 Gang Grid Switch, Black Body with Non Dimmable + WiFi 5A RF Mini Receiver
Switch:
Upgrade your lighting control with the innovative ENER-J 1 Gang Wireless Kinetic Switch in Black Body, fits into Click Mini Grid plate. No wiring, no batteries, and no drilling required. This energy-saving wireless switch is designed to fit seamlessly into your existing CLICK Mini Grid plate. Pair it with a compatible non-dimmable or dimmable receiver module (not included) via RF433Mhz and wirelessly control your lighting circuits. Enjoy the convenience of a wireless switch without the hassle of traditional installation.
Features:
- No wiring, no batteries, no drilling needed - powered by kinetic energy
- Fits into your existing CLICK Mini Grid plate. No complex wiring required
- Built-in microenergy generator with a lifetime of 200,000 on/off cycles
- Can be used alongside mains voltage grid switches for expanded lighting control
- IP65 rated Switch so can be used anywhere. Also one switch can control up to 10 receiver modules and vice-versa
Specification | Value |
---|---|
Work Type | Push Button |
Power Source | Micro Energy Acquisition and self-powered |
Communication Model | FSK |
Work Frequency | 433Hz |
Number of Keys/Colour | 1 (1 gang) / Black |
Life Time | 200,000 times on/off |
Control Distance | 30m (indoor) |
Control Method | Pairing with ECO Series Receiver Modules |
Compatibility | CLICK Mini Grid Plates |
Warranty | 3 Years |
Receiver:
Wireless Remote & Voice Control: Pair with our ECO Range Series Wireless Kinetic Switches for easy remote control or use the ENERJSMART app or voice commands with Alexa/Google Home.
Convert Existing tradition hard wired switch to 2 Way: Now you dont need to worry if your hard wired switch is off, then you cant use the wireless switch to control the same set of lights. With the new magic receiver module, even if your hard wired switch is off, the kinetic switch will still work.
Slim Design: The compact receiver module fits seamlessly in the ceiling and can be used outdoors when placed in a waterproof junction box.
Durable & Flexible Coding: Designed with ultra-low power consumption, the receiver runs up to 200,000 hours and supports one switch controlling up to 10 receiver modules or multiple switches controlling one light.
APP & Voice Control: Use the ENERJSMART app to control the receiver module from anywhere, set timers, and schedule on/off times for added convenience. Use your voice assistants such as Alexa, Google Home, Siri, etc to turn on/off your Magic Module.
Range | Indoor: Max 20M, Outdoor: Max 80M (approx) |
---|---|
Rated Load | 5A |
Max Load | LED: 500W, Other: 1100W |
IP Rating | Indoor Only (IP20) |
Dimensions | Height: 64mm, Length: 32mm, Width: 24mm |
Standby Power Consump. | <0.5W |
Communication | RF 433MHz + WiFi (2.4G only) APP & Voice Control |
- 500W RF+WiFi Non-Dimmable Receiver Module
- User Manual
