Retrofit your ENER‑J T561 LED Bulkhead into emergency-ready lighting with this plug-and-play emergency module (T564). Designed for simplicity and safety, it activates automatically during power cuts, delivering up to 3 hours of maintained light at 1 W. With built-in LiFePO₄ battery, smart diagnostics, and manual/auto test support, it’s ideal for corridors, stairwells, and utility spaces where reliability matters most.
Simple Plug‑and‑Play Installation – Installs directly into ENER‑J T561 bulkhead, converting it into emergency lighting without rewiring.
Reliable 3-Hour Backup – Provides 1 W emergency output to connected LED load, staying lit up to 3 hours during power outages.
Low Standby Power Mode – Consumes <3 W in standby; draws <0.2 W in low-power idle mode for energy efficiency.
Smart Battery Management – Charges up to 200 mA; fully charges within 24 hours; includes LiFePO₄ 3.2 V 1800 mAh battery with 3-year warranty and over-current, over-discharge, and surge protection.
Multiple Safety Features – Green LED indicates charging; automatically runs diagnostics and supports both manual and auto-test modes.
| Specification | Details |
|---|---|
| Model / SKU | Emergency Module – T564 |
| Rated Input Voltage | 220–240 VAC, 50/60 Hz |
| Max Input Current | 0.06 A @ 230 VAC |
| Inrush Current | 30 A (cold start, 100 µs pulse) |
| Power Factor | ≥ 0.5 @ 230 VAC |
| Standby Power Consumption | < 3 W |
| Battery Charging Current (Max) | 200 mA |
| Battery Charging Time | Up to 24 hours |
| Emergency Output Power | 1 W |
| Emergency Duration | Up to 3 hours |
| Output Current (Normal / Emergency) | 100–15 mA / 20–5 mA |
| Output Voltage Range | 10–60 V DC (Normal); 50–180 V DC (Emergency) |
| Battery Type | LiFePO₄ 3.2 V, 1800 mAh |
| Battery Warranty | 3 years |
| Driver Requirements | Surge current ≤ 8 A; Input ≤ 3 A; Output ≤ 2 A |
| Charging Indicator | Green LED ON = charging; OFF = fault |
| Test Mode | Manual or Auto Test selectable |
| Operating Temperature | –25 °C to +60 °C |
| Storage Temperature | –40 °C to +80 °C |
| Relative Humidity | ≤ 85 % |
| IP Rating | IP20 (when installed within bulkhead) |

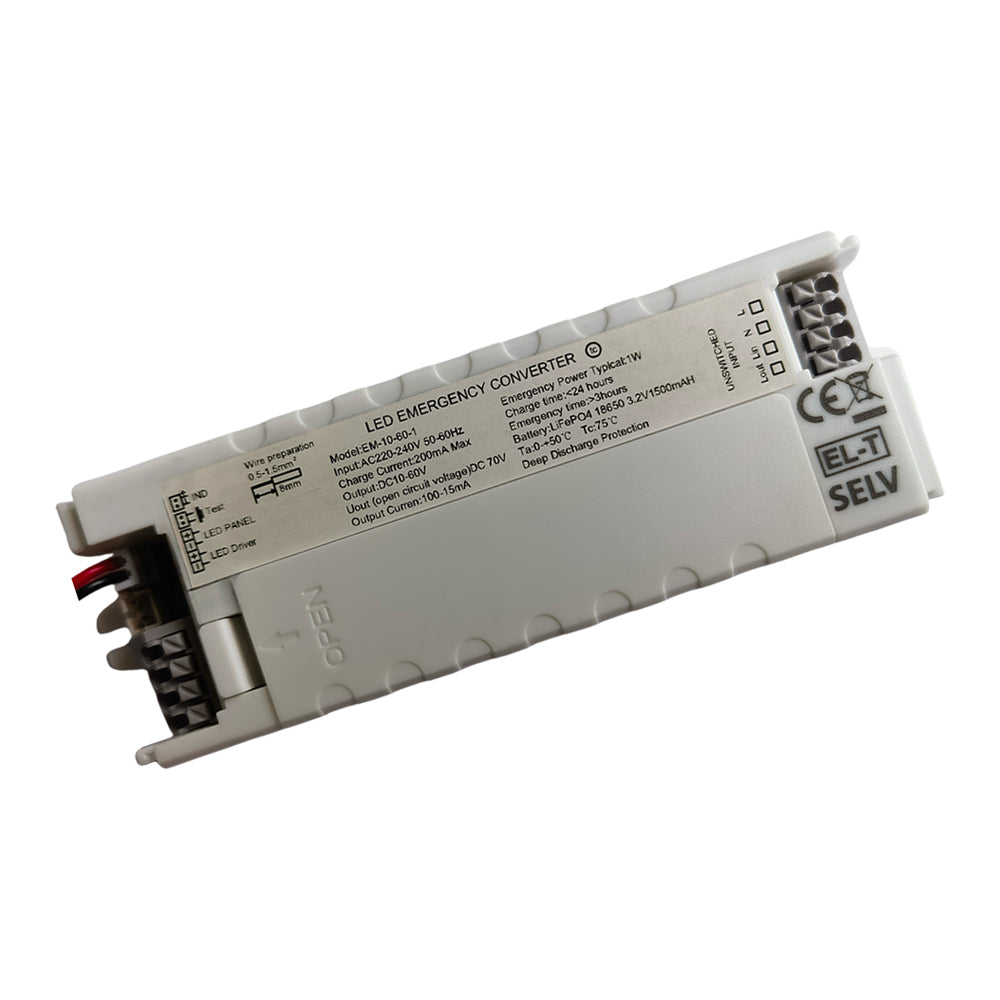

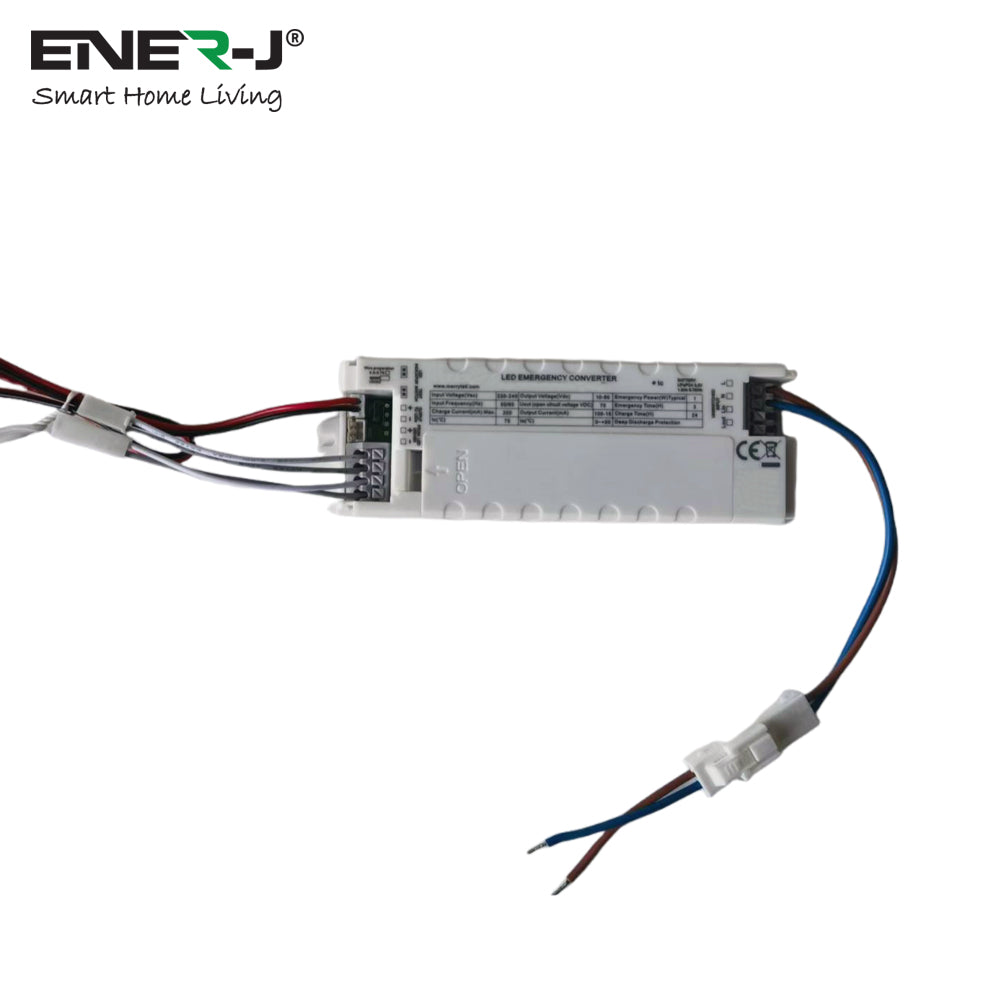

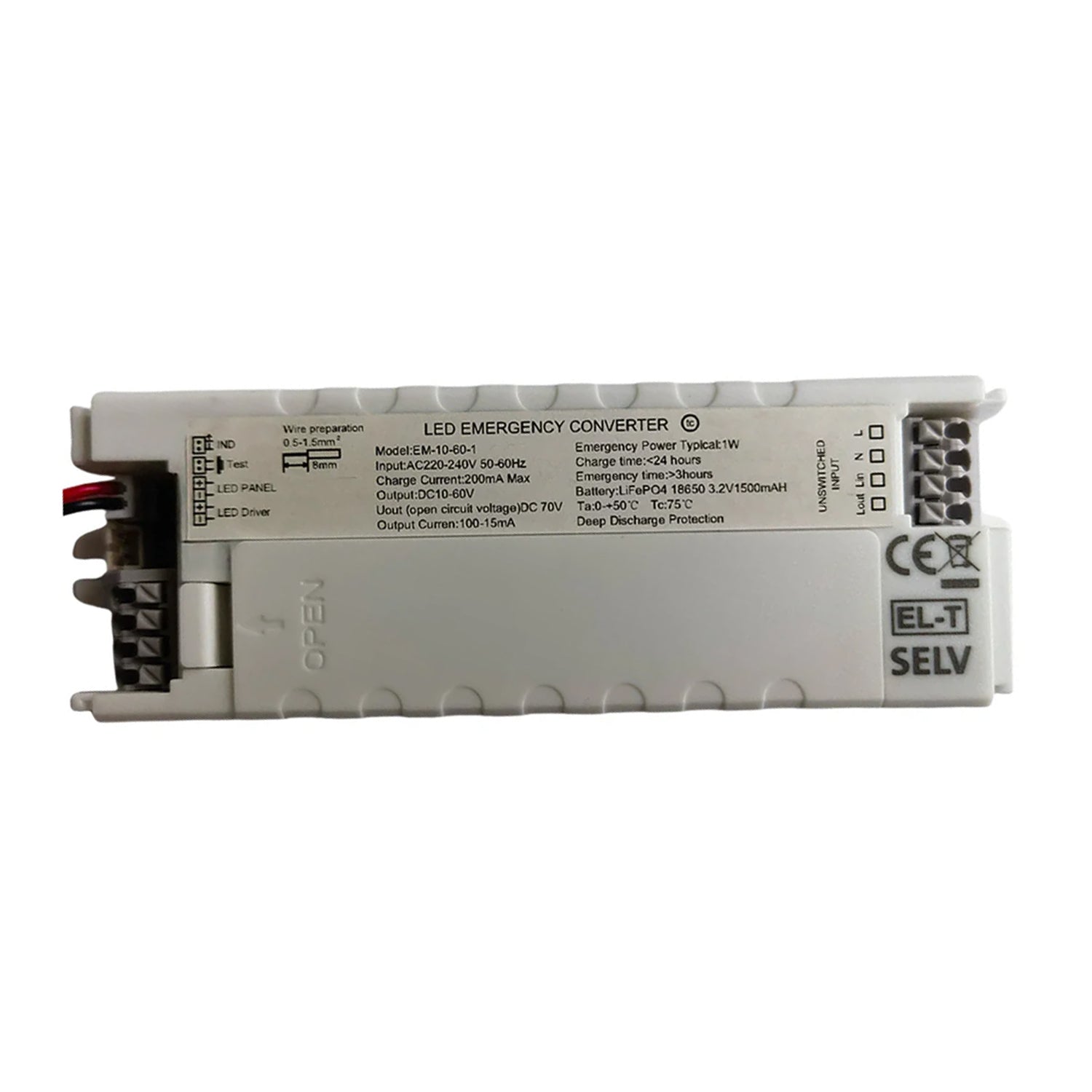

ENER-J Plug and Play Emergency Module (T564), Compatible with T561 LED Bulkhead
