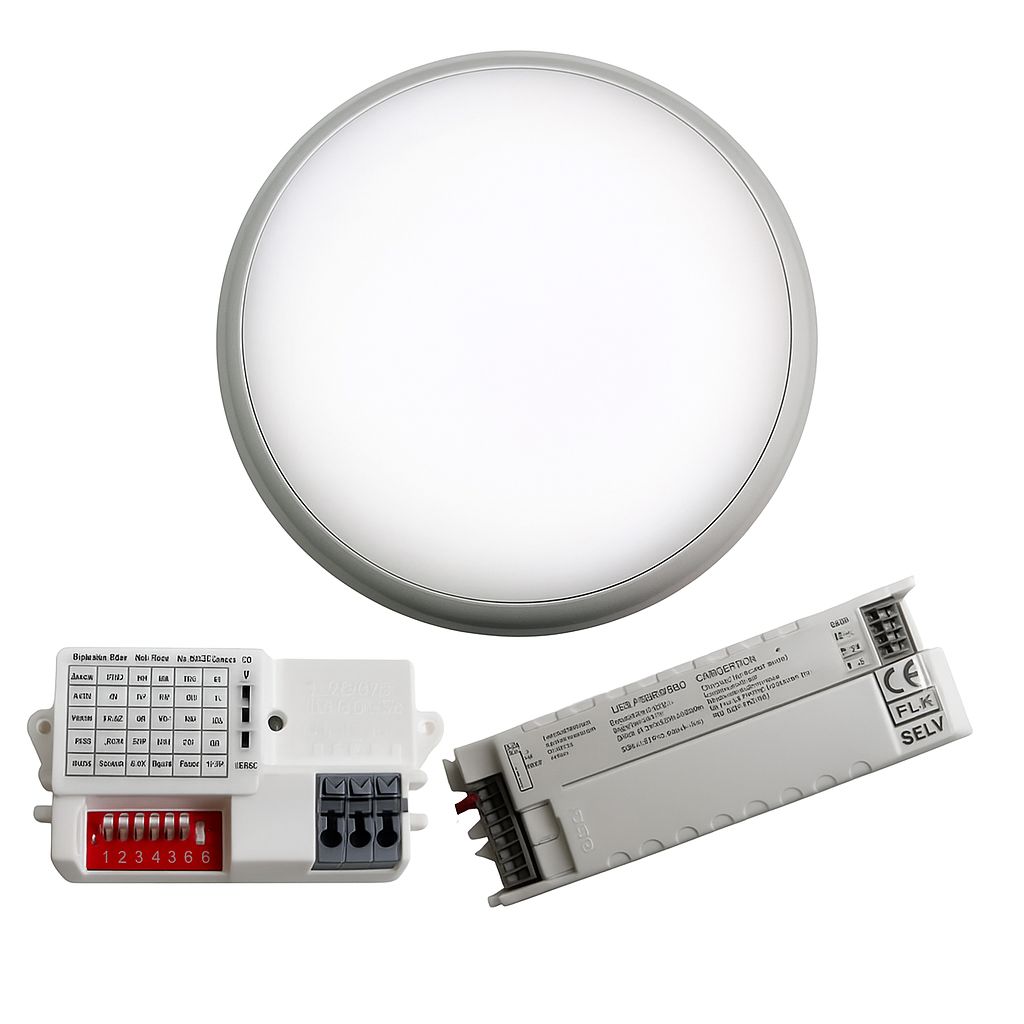

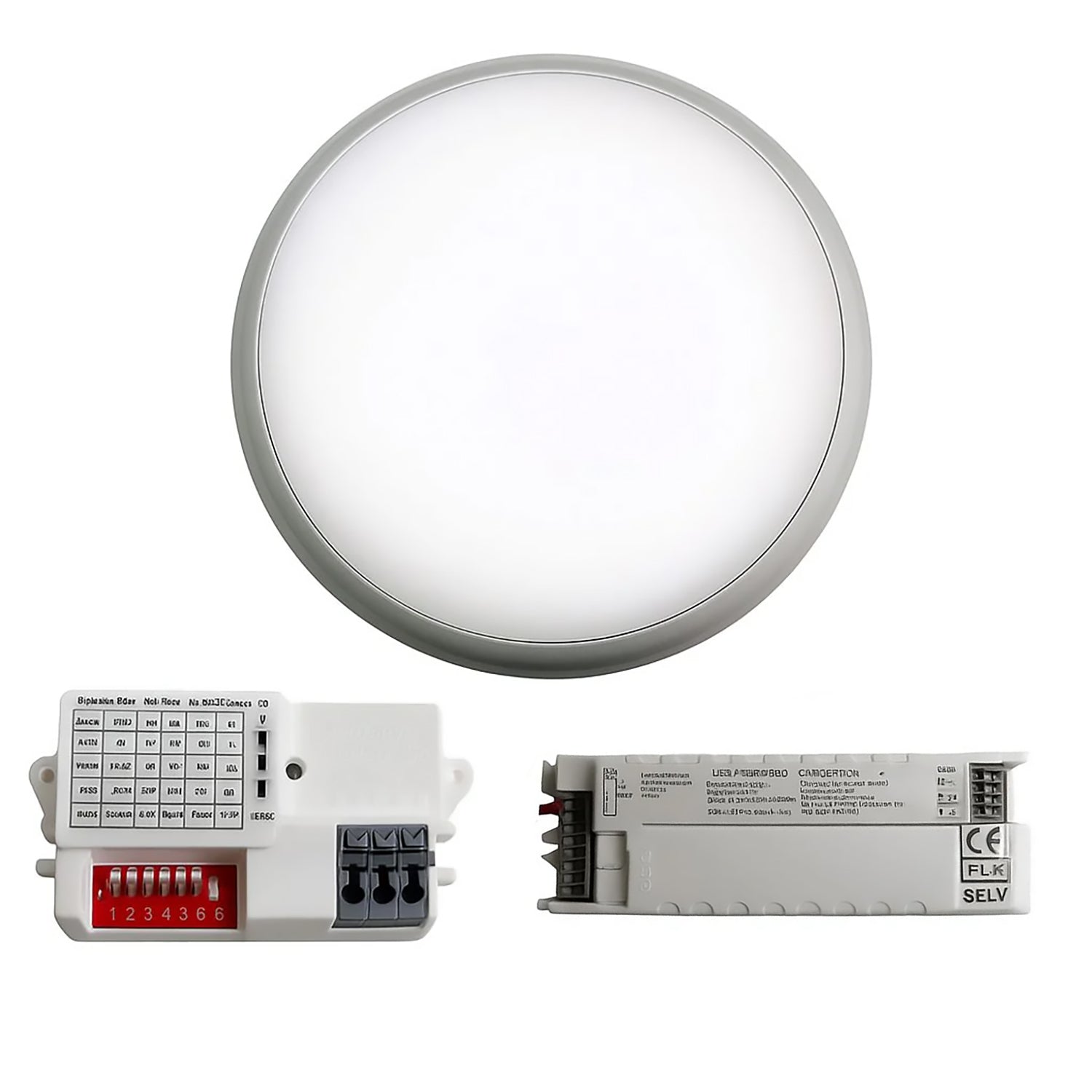

ENER-J Superhero 9-in-1 CCT & Wattage Switchable LED Bulkhead with Plug-and-Play Microwave Sensor & Emergency Module – IP65, IK10, 315 mm

ENER-J Superhero 9-in-1 LED Bulkhead with Plug-and-Play Microwave Sensor & Emergency Module
Ultimate 3-in-1 Lighting Solution for Every Space

The ENER-J Superhero 9-in-1 LED Bulkhead is designed to deliver unmatched versatility, durability, and performance in one smart lighting package. With switchable power and colour temperature options, plus easy plug-and-play upgrades for motion sensing and emergency backup, it’s the ideal all-rounder for residential, commercial, and industrial environments.

Product Overview
9-in-1 Flexibility

Easily configure power output (12 W / 15 W / 18 W) and colour temperature (3000 K / 4000 K / 6000 K) using built-in switches, allowing one fixture to adapt to any lighting need — from warm ambiance to crisp daylight.

Rugged & Reliable Design

Built to last, the bulkhead boasts IP65 waterproofing and IK10 impact resistance, ensuring dependable performance in both indoor and outdoor settings such as corridors, stairwells, bathrooms, utility rooms, and public spaces.

Quick, Hassle-Free Installation

A push-fit connector simplifies wiring, reducing installation time while ensuring a secure connection. The fixture’s slim 315 mm (approx. 320 mm) profile complements any ceiling or wall.

Energy-Saving Automation (T563 Microwave Sensor)

Enhance functionality with the plug-and-play microwave sensor, which adds intelligent motion and daylight detection. It automatically controls lighting based on occupancy and ambient brightness, helping reduce energy waste.

Adjustable hold time (5 s / 1 min / 3 min / 10 min)

Customizable detection area (25 % / 50 % / 75 % / 100 %)

Built-in daylight sensor (5 Lux / 10 Lux / 25 Lux / disabled)

Ultra-low standby consumption (< 0.2 W)

Emergency Backup Power (T564 Module)

Add peace of mind with the plug-and-play emergency module, providing up to 3 hours of illumination during power outages. The integrated LiFePO₄ battery ensures long-term reliability, safety, and smart diagnostics.

1 W emergency output, 3-hour duration

Automatic battery management and charging protection

Manual and auto test modes

Green LED indicator for charging/fault monitoring

Built to Last

Constructed from high-grade polycarbonate with an opal diffuser, this fixture is backed by a 5-year warranty for the luminaire and 3-year battery warranty for the emergency module.

Technical Specifications
Feature    Details
Model    ENER-J Superhero 9-in-1 LED Bulkhead with Sensor & Emergency Module
Power Options    12 W / 15 W / 18 W
Colour Temperature (CCT)    3000 K / 4000 K / 6000 K
Size    Ø 315 mm (Slim design)
Luminous Efficacy    High efficiency LED output
IP Rating    IP65 – Water and dust resistant
IK Rating    IK10 – Impact resistant
Material    Polycarbonate housing with opal diffuser
Installation    Push-fit connector
Class    Class II (No earth required)
Warranty (Bulkhead)    5 Years
Applications    Indoor/outdoor, corridors, stairwells, bathrooms, public areas, utility rooms
Microwave Sensor (Model T563)
Specification    Details
Input Voltage    230 V AC
Standby Power    < 0.2 W
Hold Time Settings    5 s / 1 min / 3 min / 10 min
Detection Area    25 % / 50 % / 75 % / 100 %
Daylight Threshold    5 Lux / 10 Lux / 25 Lux / Disabled
Detection Radius    ≤ 3.5 m @ 0.3 m/s; ≤ 2.5 m @ 1 m/s (at 3 m height)
Detection Angle    150°
Mounting Height    Standard 3 m (max 5 m)
Operating Temp    –25 °C to +60 °C
Storage Temp    –40 °C to +80 °C
Humidity    < 85 % RH
Emergency Module (Model T564)
Specification    Details
Input Voltage    220–240 V AC, 50/60 Hz
Standby Power    < 3 W
Charging Current (Max)    200 mA
Charging Time    Up to 24 hours
Emergency Output Power    1 W
Emergency Duration    Up to 3 hours
Battery Type    LiFePO₄ 3.2 V 1800 mAh
Battery Warranty    3 Years
Operating Temperature    –25 °C to +60 °C
Storage Temperature    –40 °C to +80 °C
Relative Humidity    ≤ 85 %
IP Rating    IP20 (when installed within bulkhead)
Test Modes    Manual / Auto Test selectable
Indicator    Green LED = charging / fault display
Key Benefits

All-in-one Smart, Sensor, and Emergency-Ready bulkhead

Flexible 9-in-1 configuration for any environment

Plug-and-Play modules – no rewiring required

Energy-efficient, durable, and easy to maintain

Backed by 5-year product warranty and 3-year battery coverage
