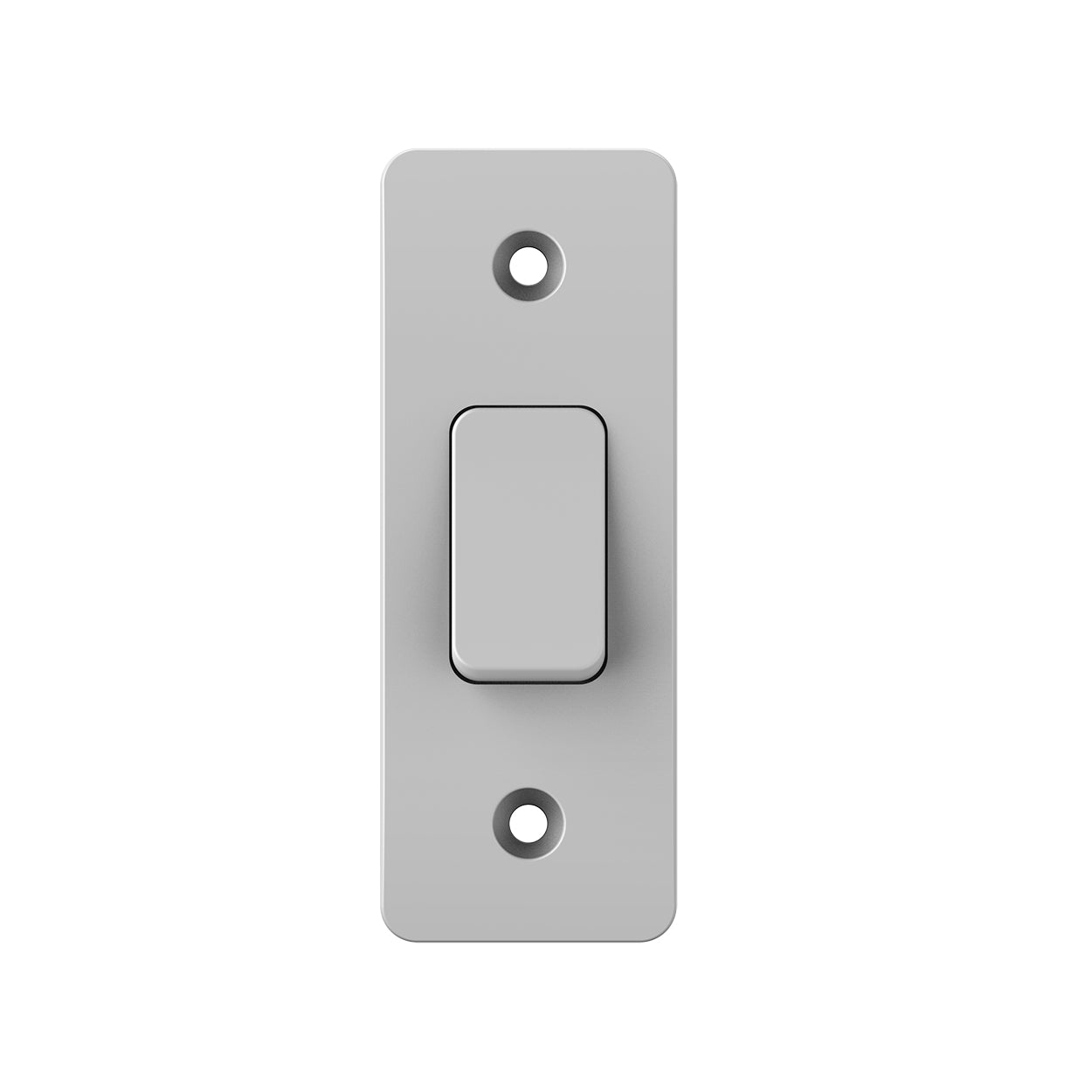

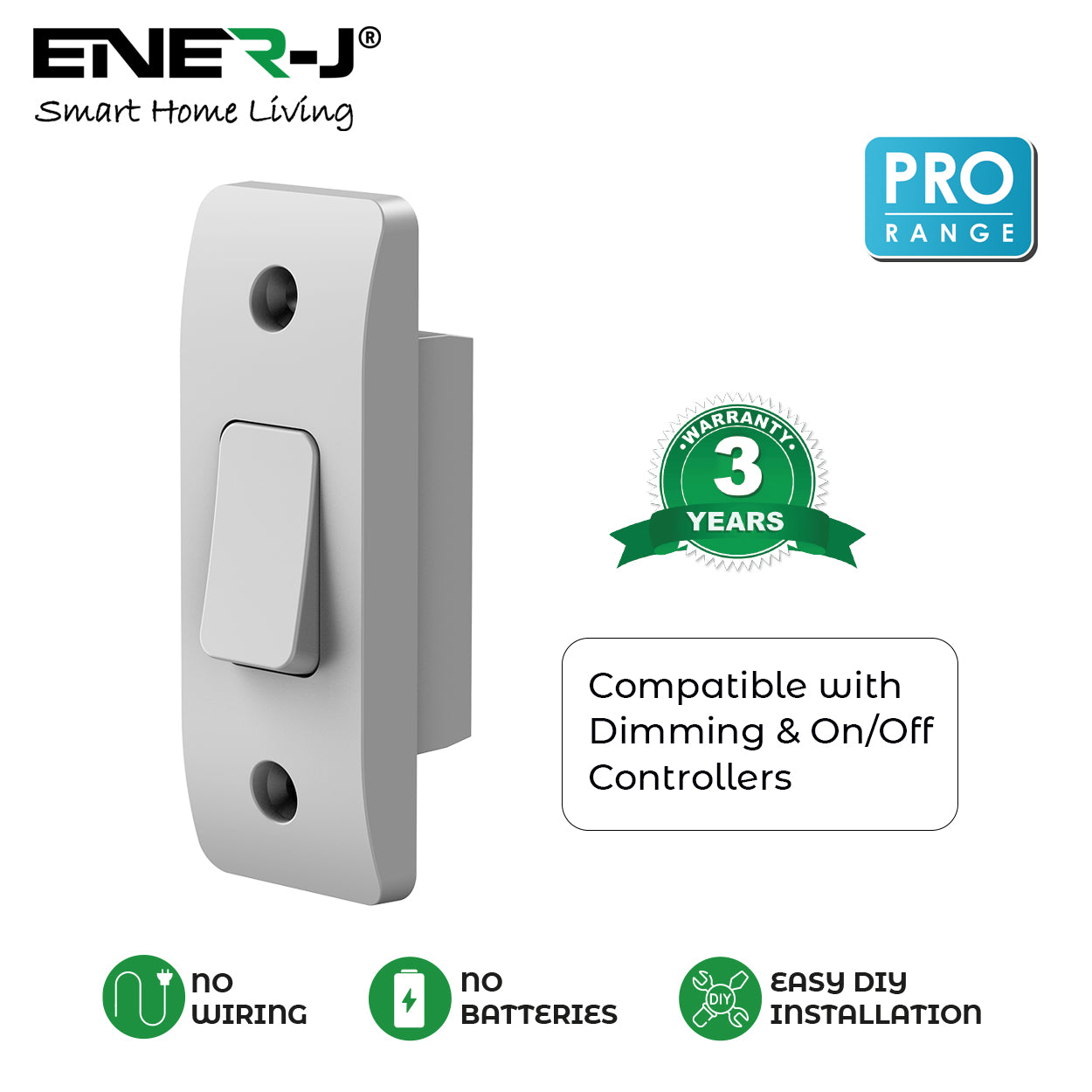

ENER-J’s Wireless Kinetic Architrave Switch offers a practical, elegant solution to switch wiring challenges. Fully self-powered with no batteries or wiring required, it works with standard architrave flush or surface boxes and can control lights or other devices via compatible ENER-J controllers—perfect for retrofits, renovations, and new builds. Eliminates the headache of running wires through architrave, skirting, or other difficult areas.
No Wiring, No Battery Needed – Built-in micro energy generator converts each press into power to send a signal to the controller.
Seamless Compatibility – Fits 1-gang architrave flush or surface boxes with a minimum depth of 16 mm.
Works with Dimmable or On/Off Controllers – Can be paired with any ENER-J standard or dimming wireless receiver.
Multi-Switch Control – Each controller can be controlled by up to 5 switches
Durable & Reliable – Over 200,000 switch cycles; works in temperatures from -30°C to 55°C. Ideal for homes, offices, or commercial spaces.
TECHNICAL SPECIFICATIONS
| Specification |
Details |
| Product Name |
Wireless Kinetic Architrave Grid Switch PRO Range |
| SKU Code |
WS1090 |
| Work Type |
Push Button |
| Power Source |
Micro Energy Generator / Self-Powered |
| Work Frequency |
433 Hz |
| Number of Keys |
1 Gang (Single Switch) |
| Lifetime |
200,000 On/Off cycles |
| Work Temperature |
-30°C ~ 55°C |
| Control Distance |
20 m (indoor) |
| Control Method |
Pairing with ENER-J PRO Series Wireless Controller |
| Compatible Boxes |
1-Gang Flush or Surface Architrave Boxes (≥16mm depth) |
| Warranty |
3 Years |
| Installation |
Easy Adhesive / Screw Mount |
1 x Wireless Kinetic Architrave Switch (White)
