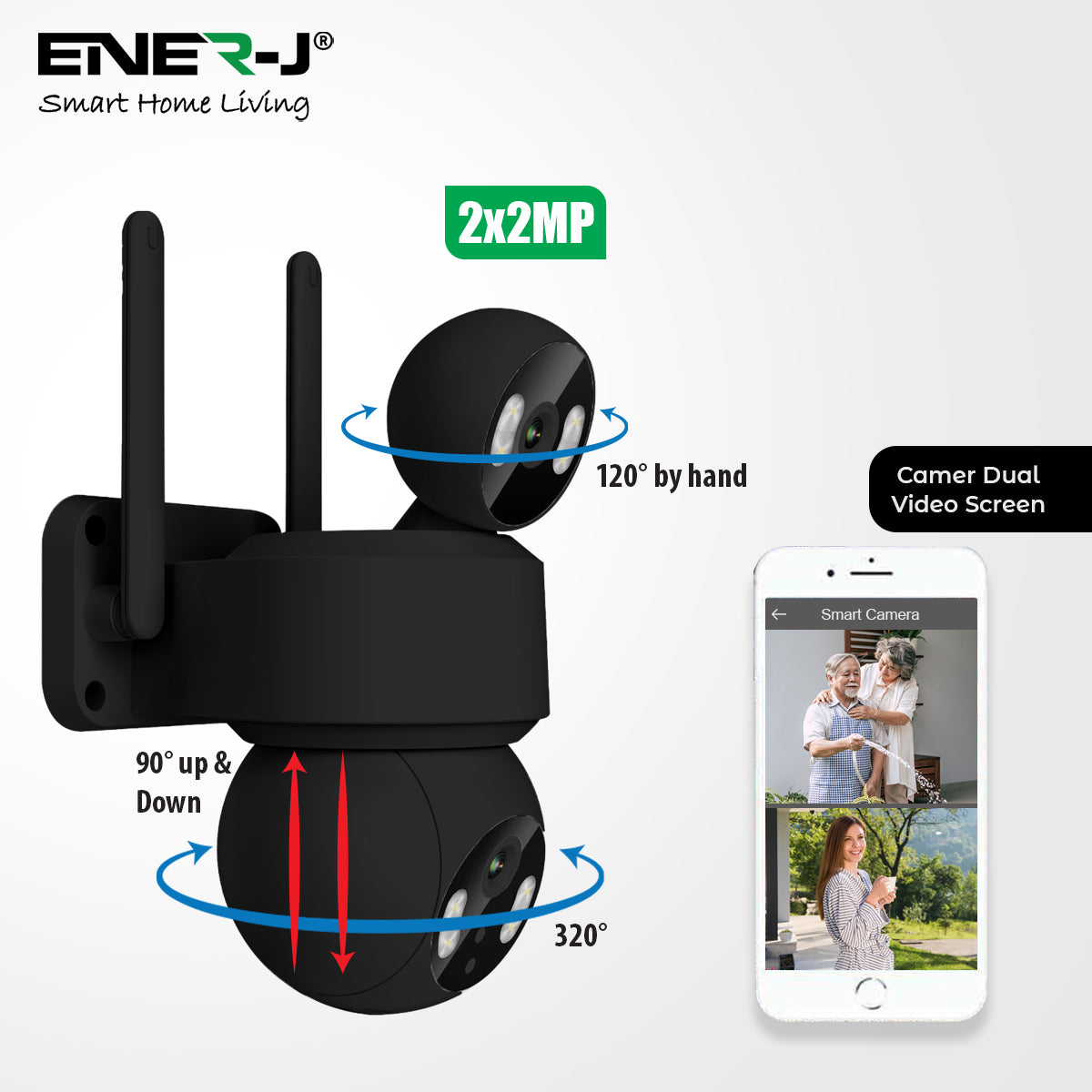

Outer Appearance
|
Design
|
Form Factor:
Dome Camera
Product Colour:
White/Black
Antenna:
Visible antenna*2
|
|
|
Materials
|
ABS15E1+PC
|
|
|
Surface Finishing
|
White/Black
|
|
|
Waterproof Level
|
Weatherproof
|
|
|
Dimensions (L
W
H)
|
140*
110*
89mm (excluding antenna)
|
|
Hardware
|
Platform Information
|
Hardware Solution:
ANYKA KM01 + GC2083 + RTL8188 + 8M Flash
|
|
|
Chipset
|
Main Chipset:
ANYKA KM01
|
|
Camera
|
Lens
|
Optics:
4mm, F2.2 aperture,
Viewing Angle:
D:110°*H:88°*V:66°,
Image Circle:
Ø8.9
|
|
|
Image Sensor
|
Sensor Type:
GC2083 (2MP 1/3.02" Progressive Scan CMOS) X2,
Resolution:
1920*1080 Pixel
|
|
|
Night Vision
|
Distance:
25M (850nm)
|
|
Night Vision
|
IR Light
|
4pcs dual lights (IR + white light) *1W/10 meters (λ=850nm), 4pcs dual lights (white light temperature 4200~4600K)
|
|
|
LED Work
|
8pcs of IR light, 8pcs of white light
|
|
|
IR-CUT
|
Pendulum oscillating IR-CUT
|
|
|
Photosensitive
|
Ø3, 550nm
|
|
|
Low Illumination
|
Colorful cut black: 3.5Lux; black cut colorful: 5.5Lux
|
|
Indicator
|
Working Indicator
|
Red light indicates powering on, Blue light indicates WIFI working
|
|
Hardware Features
|
WiFi Module
|
RTL8188FTY / IEEE 802.11 b/g/n
|
|
|
Mic
|
Sensitivity: ≥-36±3dBm, weatherproof
|
|
|
Speaker
|
Round inside 8Ω/2W, weatherproof
|
|
|
TF Card
|
Max to 128G (Not Included)
|
|
|
Button Switch
|
Reset*1
|
|
|
PTZ
|
Horizontal Angle:
280°,
Vertical Angle:
95°
|
|
|
Power Supply Input
|
DC 5V 2A
|
|
|
WiFi Standard
|
IEEE 802.11 b/g/n, single frequency 2.4G
|
|
Software Functions
|
Audio
|
Echo Cancellation:
Support,
Two-Way Talk:
Support
|
|
|
Video
|
Video Format:
H.264/H.265 compression,
Video Stream:
15fps,
Resolution & Frame Rate:
1080P
|
|
Software - APP
|
Operating System
|
Android 8.0 and later versions, IOS 9.X-10.X and later versions
|
|
|
Mobile APP
|
Supports setting/real-time browse/playback/talk/volume/video adjust/record/album/format SD card
|
|
|
Communication Protocol
|
WiFi
|
|
|
On Line Visitor
|
Max 3 visitors online
|
|
|
Alarm Type
|
PUSH message, timed alarm, movement alarm, light/sound alarm
|
|
|
Detection Sensitivity
|
0-3 degrees, default 2, low medium high
|
|
|
Pairing
|
Scan QR Code for pairing
|
|
|
Cloud Storage
|
TBA
|
|
|
OTA Upgrade
|
Support
|
|
|
Acoustooptic Alarm
|
Night time passive enable, default white light always on
|
|
Movement Detection
|
Activate
|
Alarm Recording Time:
1 minute<br>
Trigger Alarm Interval:
1 minute
|
|
Button Definitions
|
Power Button (key)
|
5S - Device power ON/OFF
|
|
|
Reset Button (key)
|
5S - Device resetting, WiFi automatic configuration status
|
|
Wireless Connections
|
Reset the Device
|
DongDong prompt tone -> device restart -> the device automatic -> connect successful prompt tone (customizable)
|
|
|
Restart the Device
|
Same as powering on
|
|
|
Lost Network Connection
|
APP display offline
|
|
Accessories & Packaging
|
Micro USB Cable
|
5V, 2A
|
|
|
Screw Kit
|
Plastic bag + screws*
5 + plastic screw*
4
|
|
|
User Manual
|
1pc
|
|
|
|
|
|
Temperature
|
Temperature Setting
|
Working: -20 ~ 55 ℃, Humidity <95%, Storage: -20 ~ 60 ℃, Humidity <95%
|
